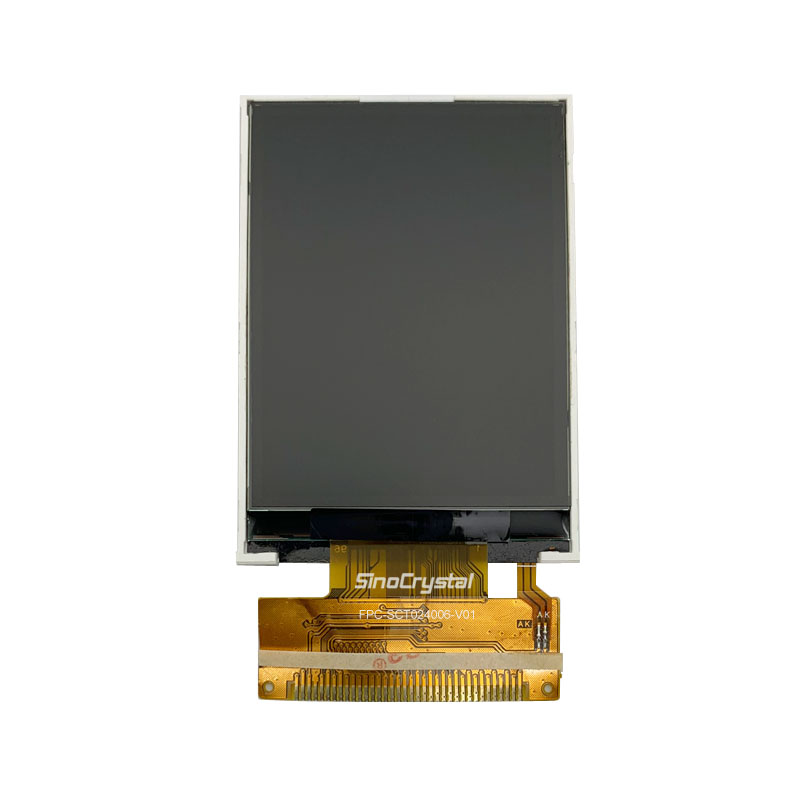

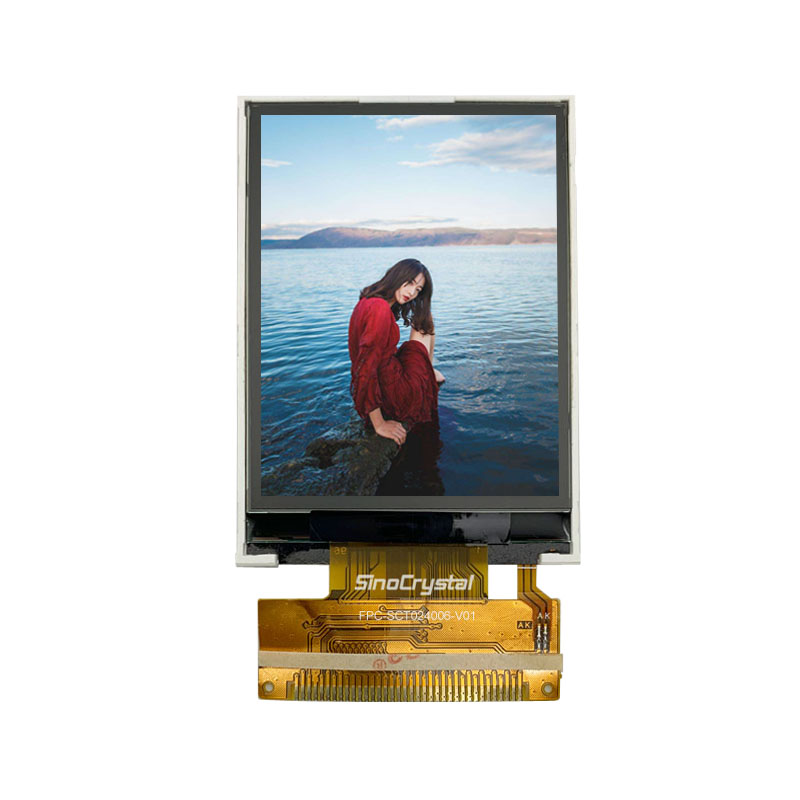

2.4'' TFT Lcd Display With 240*320 MCU ILI9341 IC 36 Pin

SCT024006-V01 is a 2.4'' TFT LCD Display with 240*320 resolution, ILI9341 IC, and supports MCU interface, 36 PIN, 12 o'clock.

  • Type: TFT
  • Mode: TN
  • Product No: SCT024006-V01
  • Size: 2.4''
  • Resolution: 240*320
  • Outline Dimension: 47.72*60.26*2.40
  • Active Area: 36.72*48.96
  • Interface: MCU
  • IC: ILI9341V
  • Brightness: 300cd/m2
  • Touch Screen: No
  • View Direction: 12
  • Pin No: 36
  • Shape: Rectangle
Inquiry Now

Introduction:

General Specification



ItemNominal DimensionUnit
Dot Matrix240 x RGB x 320Dots
Module Size ( W×H×T )42.72 x 60.26 x 3.55mm.
Active Area ( W×H )36.72 x 48.96mm.
Pixel arrangementRGB Stripemm.
Dot Pitch ( W×H )0.153 x 0.153mm.
Color depth262K(MAX)colors
InterfaceMCU
Driving IC PackageCOG
Operating temperature-20 ~70ºC
Storage temperature-30~80ºC
LCD Typea-Si TFT
LCD ModeTN/Normal White
Backlight TypeLED x 4PCS

Interface Definition



Pin NoPin SymbolTypeDescription
1–3NCNo use
4IM1H/LMCU Interface Mode Select, IM1 has been set to 0
5NCNo use
6/RESETH/LReset signal
7–10NCNo use
11–28D17 – D0H/LData bus , Fix to VSS level when not in use D[17:10] and D[8:1] used
29RDH/LRead Signal
30WRH/LWrite Signal
31DCH/Lselector of command or parameter
32CSH/LChip Select
33GND0VGround
34VDD2.8-3.2VPower supply
35KLED light, cathode
36ALED light, anode
