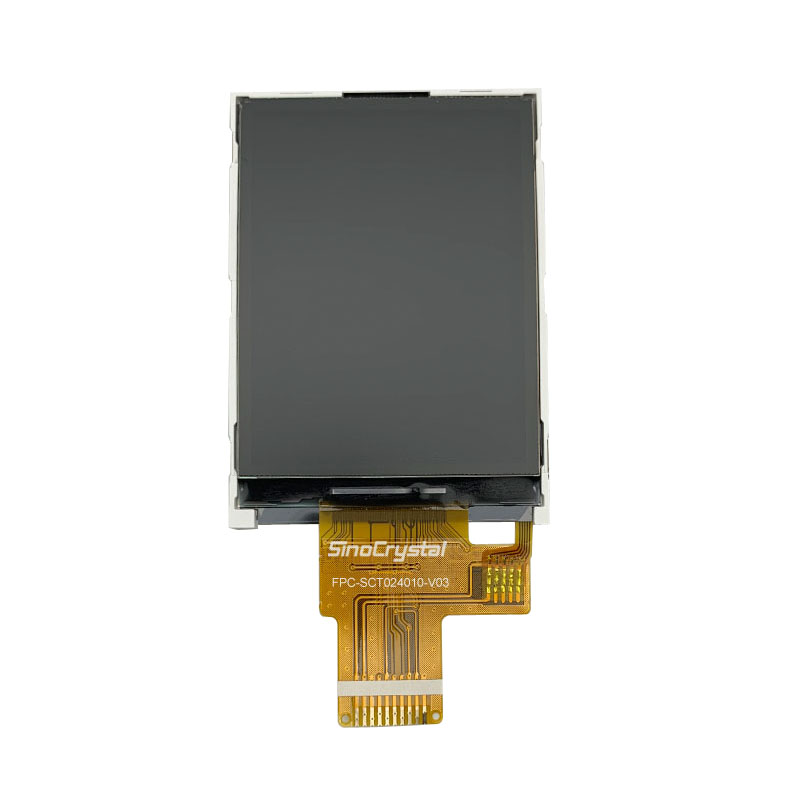

2.4” TFT Transmissive Normal White Display With SPI HX8347I IC

SCT024010-V01 is a 2.4” TFT LCD Display with 240*320 resolution, with HX8347I IC, SPI interface, 10 PIN, 12 o’clock View direction.

  • Type: TFT
  • Mode: TN
  • Product No: SCT024010-V01
  • Size: 2.4''
  • Resolution: 240*320
  • Outline Dimension: 47.72*60.26*2.40
  • Active Area: 40.32*56.26
  • Interface: 4-line SPI
  • IC: HX83471
  • Brightness: 300cd/m2
  • Touch Screen: No
  • View Direction: 6
  • Pin No: 10
  • Shape: Rectangle
Inquiry Now


General Specification


ItemNominal DimensionUnit
  Dot Matrix240 x RGB x 320Dots
  Module Size ( W×H×T )42.72 x 60.26 x 2.45mm.
  Active Area ( W×H )36.72 x 48.96mm.
  Pixel arrangementRGB Stripemm.
  Dot Pitch ( W×H )0.153 x 0.153mm.
  Color depth262K(MAX)colors
  Interface4-line SPI
  Driving IC PackageCOG
  Operating temperature-20 ~70ºC
  Storage temperature-30~80ºC
  LCD Typea-Si TFT
  LCD ModeTN/Normal White
  Backlight TypeLED x 4PCS

Interface Definition


Pin NoPin SymbolTypeDescription

Command / parameter or display data selection 0: Command or parameter
2RSH/L1: Display data
3CS0VChip select
4SCLH/LSPI clock
6RESETH/LReset signal
7VCC2.8-3.2VPower supply
9LEDALED light, anode
10LEDKLED light, cathode.
