UART LCD Display: The Optimal Solution to Overcome Display Structure Limitations

In the current field of electronic devices, the lcd display screen is a crucial part of human-machine interaction. However, traditional lcd display solutions often face structural design constraints, limiting their effectiveness in specific scenarios. Against this backdrop, UART lcd displays, which are easier to develop and do not require consideration of underlying display technology, are gradually emerging as the optimal solution to overcome these structural limitations.



What is a UART LCD Display?

A UART lcd display, also known as a serial port display, is a screen that uses a serial communication interface. It communicates with the main controller via the serial port, facilitating data transmission and display. Compared to traditional display solutions, UART lcd displays offer greater flexibility and customizability. They can adjust display content, interface layout, and interaction modes based on actual application needs, meeting the requirements of various scenarios.

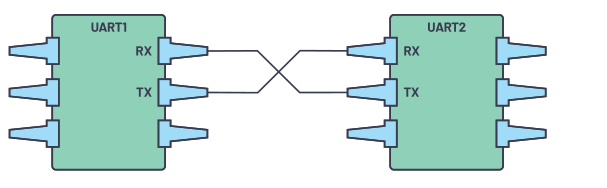

 UART connection method

Advantages of UART LCD Displays

1.     Addressing Limited MCU Capabilities

In some resource-constrained embedded systems, the MCU may need to handle large amounts of data and control tasks. UART lcd displays can offload the display tasks from the MCU, allowing the MCU to focus more on core functionalities. UART lcd displays communicate with the MCU through a single serial port interface, without occupying many interface resources. This not only reduces system complexity but also enhances system reliability.



2.     Solving MCU Interface Shortage Issues

In complex electronic systems, MCU interface resources are often very limited. UART lcd displays can communicate with the MCU via a single serial port interface, avoiding excessive consumption of interface resources. This not only lowers system complexity but also improves system reliability, effectively solving the problem of insufficient MCU interfaces.

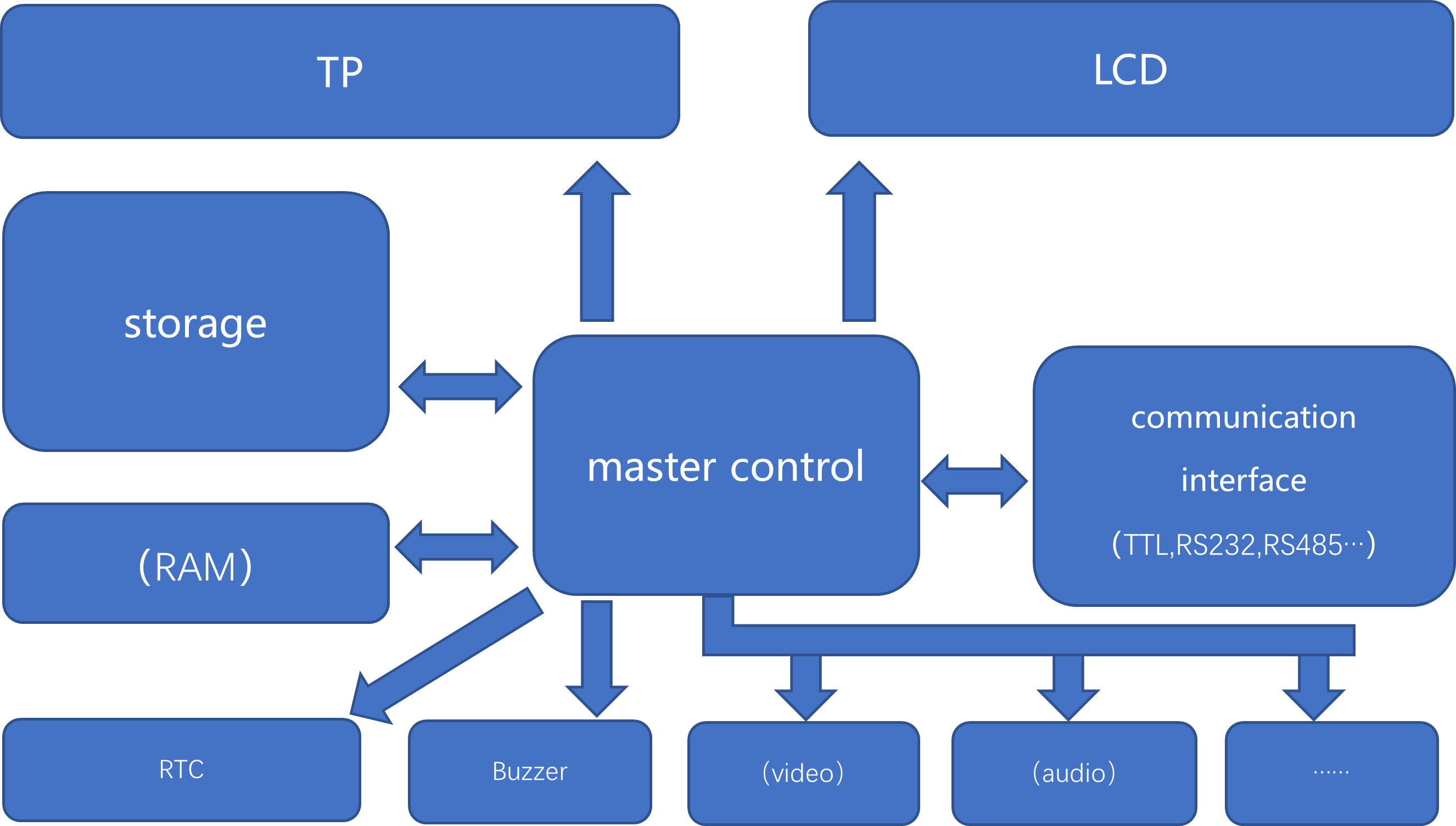

Hardware composition of UART lcd displays

3.     Effectively Addressing Long-Distance Interference Issues

In traditional lcd display solutions, signal attenuation or interference often occurs due to transmission distance limitations, leading to poor display performance. UART lcd displays can use differential signal transmission technology (such as RS485), which effectively resists external interference and ensures stable signal transmission. Even over long distances, clear display effects can be maintained.



4.     Compact Size, Suitable for Various Tight Device Structures

Whether in smart wearable devices, industrial control instruments, or smart home products, UART lcd displays can be easily embedded to achieve real-time information display. This allows designers to be more flexible in device structure design, no longer constrained by traditional display solutions. The use of serial communication greatly simplifies circuit design, reduces the number of wires, and lowers wiring difficulty. With characteristics like small size, light weight, and low power consumption, UART lcd displays are easy to integrate and install in limited spaces, providing more possibilities for device structural design.

 UART lcd displays

Conclusion

In conclusion, as a more efficient lcd display solution, UART lcd displays are gradually becoming the optimal choice for overcoming display structure limitations, thanks to their flexibility, customizability, structural advantages, and high reliability. In the future field of electronic devices, UART lcd displays are expected to see broader application and promotion, bringing more convenience and surprises to people's lives.



Additional Sinocrystal has extensive production experience in Smart TFT LCD Display/Uart TFT LCD Display, offering customized products in various sizes ranging from 2.4'' to 12.1''. This capability has significantly reduced time to market and lowered BOM costs for our customers.
