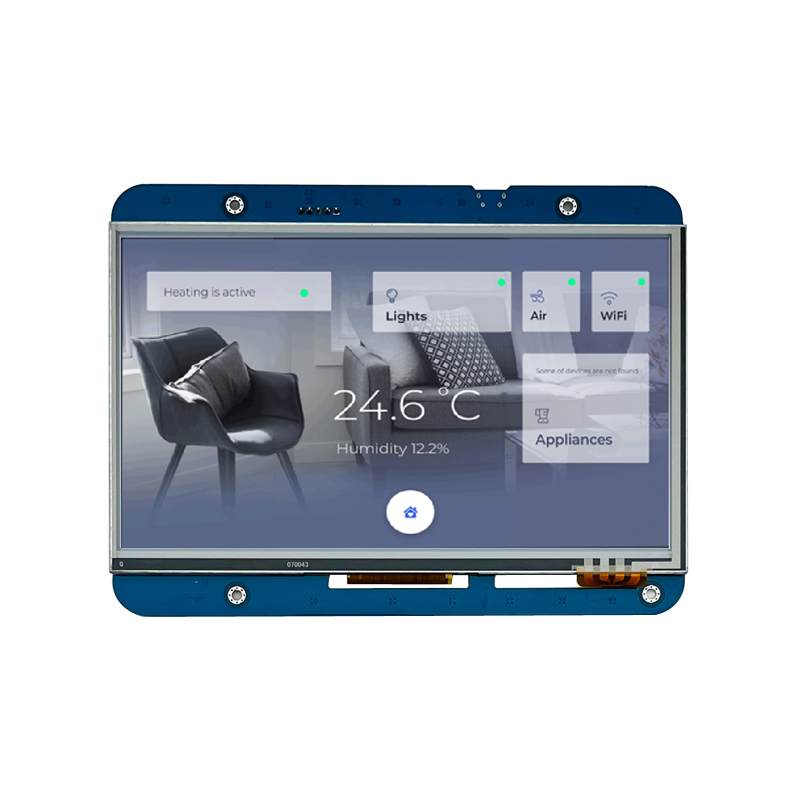

Sinocrystal UART TFT LCD modules are all-in-one solutions that integrate display, touch, controller, and embedded logic — ideal for fast, low-code GUI development. With a simple UART serial interface, our displays eliminate the need for complex driver programming.

 Key Features

 ➤ UART communication with any MCU (STM32, Arduino, ESP32, Raspberry Pi)

 ➤ PC-based GUI editor – drag-and-drop UI creation

 ➤ Built-in Lua engine for custom logic and behavior

 ➤ Capacitive & resistive touch panel options

 ➤ Optional RJ45 port for remote control and expansion

 ➤ Compact design – reduces BOM and wiring complexity

 ➤ Event-driven protocol – no need for polling

 ➤ Fast time-to-market: prototype in days

 Applications: Industrial control, medical devices, smart home systems, vending machines, education kits, consumer electronics.  Build interactive, modern UIs easily — no graphics programming required.



Type Mode Product No. Size Picture Resolution Outline Dimension Active Area Interface IC Brightness Touch Screen View Direction Pin No. Shape
Uart Uart SCS043001-V01 4.3 480×272 105.50*67.20*7.72 95.04*53.86 Uart / 250 CTP 12 8 Rectangle
Uart Uart SCS050002-V01 5 800×480 120.70*76.30*8.07 108.00*64.80 Uart / 300 RTP 12 8 Rectangle
Uart Uart SCS040001-V01 4.0 480×480 86.31*86.31*37 71.86*70.18 Uart / 250 CTP IPS 4+2 Rectangle
Uart Uart SCS050001-V01 5 800×480 120.70*76.30*8.07 108.00*64.80 Uart / 300 CTP 12 8 Rectangle
Uart Uart SCS070001-V01 7 800×480 165.30*101.00*9.07 154.08* Uart / 300 CTP 12 5 Rectangle
Uart Uart SCS070002-V01 7 800×480 165.30*101.00*9.07 154.08* 85.92 Uart / 300 nits RTP 12 5 Rectangle
